Nizar Sheetsandplates stands out as a top manufacturer and supplier of Stainless Steel 409 Sheets and Plates in Amman, Jordan. We pride ourselves on delivering reliable and budget-friendly stainless steel solutions for a variety of industrial needs. Our SS 409 Sheets and Plates are crafted from high-quality raw materials and cutting-edge production techniques, ensuring they boast impressive durability, precise dimensions, and excellent performance even at high temperatures. With their great weldability, resistance to oxidation, and affordability, these sheets and plates are perfect for the automotive, construction, and engineering industries. Businesses across Jordan count on our SS 409 products for their dependable strength, easy fabrication, and long-lasting service.
Stainless Steel 409 Sheets and Plates are made up of chromium (10.5–11.75%), carbon (≤0.08%), manganese, silicon, and titanium stabilizers, with iron being the main component. This ferritic stainless steel grade provides moderate resistance to corrosion, strong oxidation resistance, and dependable mechanical strength at elevated temperatures. The addition of titanium enhances weldability and reduces carbide precipitation. SS 409 showcases good tensile strength, ductility, and formability, making it ideal for various fabrication processes. These mechanical properties make SS 409 Sheets and Plates a robust and cost-effective option for industrial and automotive uses.
| Standards | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 0.01~200mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

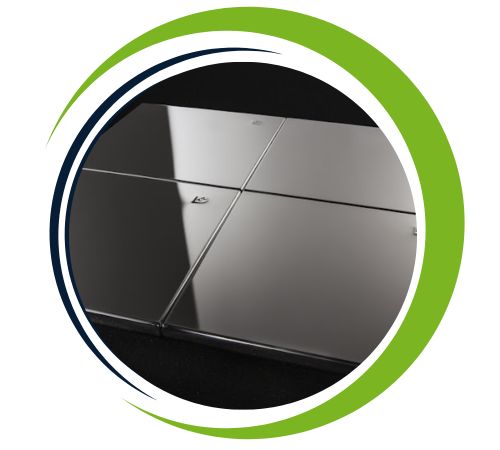

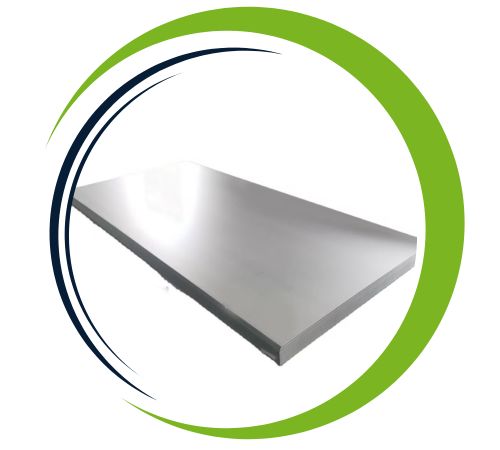

| Surface Finish | the surface and finish of stainless steel 409 sheet: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

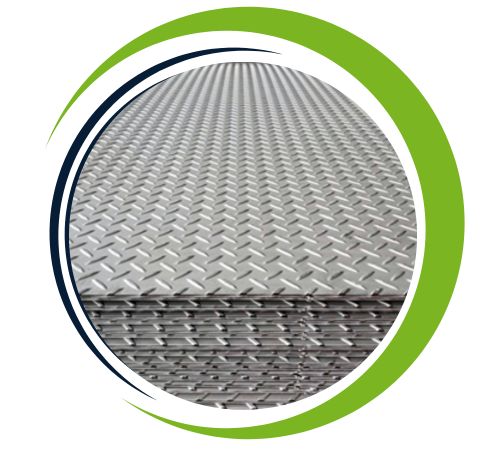

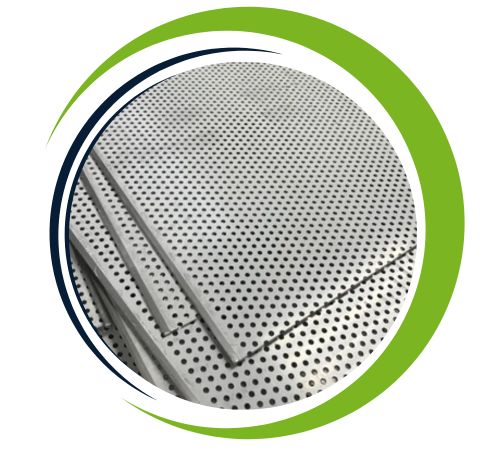

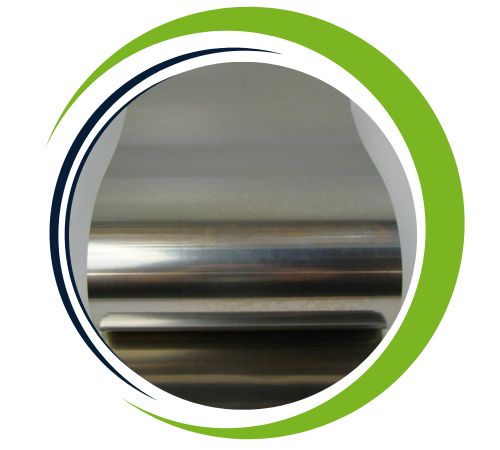

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mg | Ph | Si | Sl | Cr | Ti | Ni |
| 409 min 409 max | – 0.08 | – 1 | – 0.045 | – 1 | – 0.045 | 10.5 11.75 | 6xC – | – 0.5 |
| Density (lb / cu. in.) | Specific Gravity | Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | Modulus of Elasticity Tension |
| 0.278 | 7.86 | 0.11 | 29 |
| Grade | WERKSTOFF NR. | AISI | UNS | AFNOR | BS | GOST | JIS |
| SS 409 | 1.4512 | 409 | S40900 | Z3CT12 | 409 S 19 | SUH 409 | – |
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (μm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nΩ.m) |
|||
|
0-100°C |
0-315°C |
0-538°C |
at 100°C |
at 500°C |
|||||
|
409 |
7800 |
200 |
11.0 |
11.7 |
12.4 |
25.8 |
27.5 |
460 |
600 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 409 sheets and plates have many advantages, including excellent corrosion and oxidation resistance, and the high chromium content provides durability against scratches and scratches, especially in areas where fragile and hot. The material exhibits excellent weldability and formability, making it easy to manufacture for a variety of applications. Balancing strength and cost, stainless steel 409 is ideal for automotive exhaust systems, heat exchangers and furnace components. In addition, it resists thermal fatigue well and is very durable under extreme conditions.
Stainless Steel 409 Sheets and Plates find extensive use in industries that need heat-resistant and economical stainless steel materials. They are commonly found in automotive exhaust systems, catalytic converter shells, mufflers, and heat shields, thanks to their strong resistance to oxidation. In industrial settings, SS 409 Sheets and Plates are utilized for furnace components, ductwork, refinery equipment, and parts for heat exchangers. They also excel in construction frameworks, fabrication projects, and agricultural applications, proving their versatility and reliability across various sectors.
