Nizar Sheetsandplates, a trusted manufacturer and supplier located in Amman, Jordan, specializes in high-performance Stainless Steel 347 Sheets and Plates designed for exceptional durability in high-temperature and corrosive settings. SS 347 is an austenitic stainless steel grade that’s stabilized with columbium (niobium), giving it impressive resistance to intergranular corrosion after welding and exposure to heat. Nizar Sheetsandplates prides itself on precision manufacturing, consistent quality, and a top-notch surface finish, catering to industries like petrochemical, refinery, power generation, and thermal processing. With a reliable supply chain and a customer-first approach, the company is a go-to source for premium stainless steel products both locally and globally.
Stainless Steel 347 Sheets and Plates are made up of chromium (17–19%), nickel (9–13%), and niobium stabilizers that boost resistance to carbide precipitation during high-temperature use. This alloy boasts a tensile strength of around 515 MPa and a yield strength of 205 MPa, ensuring good toughness and formability. Its stabilized structure provides excellent resistance to oxidation, stress corrosion cracking, and creep at elevated temperatures. SS 347 is known for its good weldability, thermal stability, and long-lasting durability, making it perfect for components that face continuous heat cycling and harsh industrial conditions.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

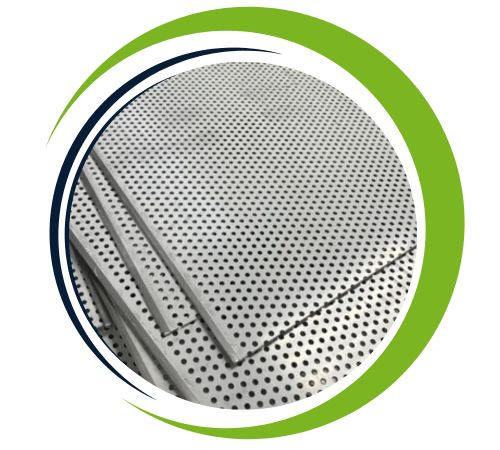

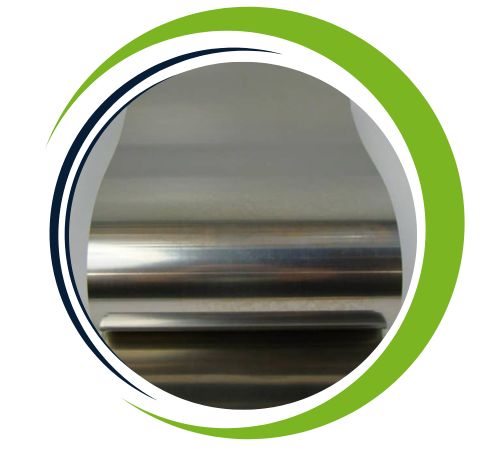

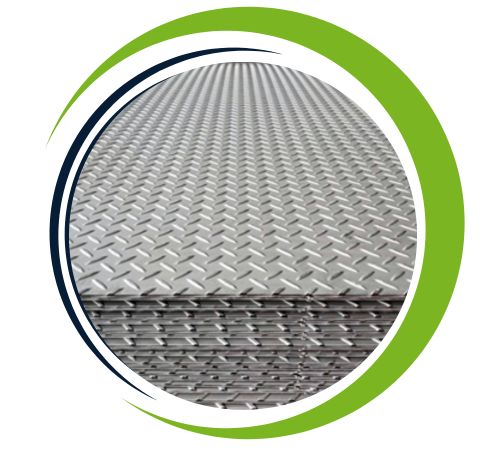

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 347 sheets and plates offer several advantages, including excellent resistance to intergranular corrosion, making them ideal for high-temperature applications The addition of niobium stabilizes the material and provides carbide precipitation a resistance is high, especially in the welded state. It provides excellent oxidation and scaling resistance at high temperatures, making it suitable for environmental applications such as chemical processing, power generation, aerospace industries etc. Stainless steel 347 with strength a outstanding, durable and corrosion resistance ensure long-term performance in extreme conditions, reduce maintenance costs and extend component life.
Stainless Steel 347 Sheets and Plates find their place in various applications that demand long-term exposure to high temperatures and corrosive environments. They are commonly used in heat exchangers, boiler tubes, exhaust manifolds, furnace parts, and refinery equipment thanks to their outstanding thermal stability. The alloy’s resistance to intergranular corrosion makes it a great choice for welded structures in chemical processing, pharmaceutical manufacturing, and food equipment. SS 347 is also utilized in aerospace applications, showcasing its versatility and reliability in demanding conditions.
