Nizar Sheetsandplates is a top-notch manufacturer and supplier located in Amman, Jordan, specializing in high-quality Stainless Steel 317L Angles designed for tough industrial, structural, and corrosion-resistant applications. Renowned for their precision engineering and durability, the company prides itself on a customer-centric approach, ensuring that every angle adheres to international quality standards. With state-of-the-art fabrication facilities and strict quality control measures, Nizar Sheetsandplates delivers products that promise excellent performance, longevity, and reliability. Their dedication to timely deliveries, technical know-how, and competitive pricing has made them a go-to choice for clients in the chemical, petrochemical, marine, food processing, and construction sectors throughout Jordan and the Middle East.

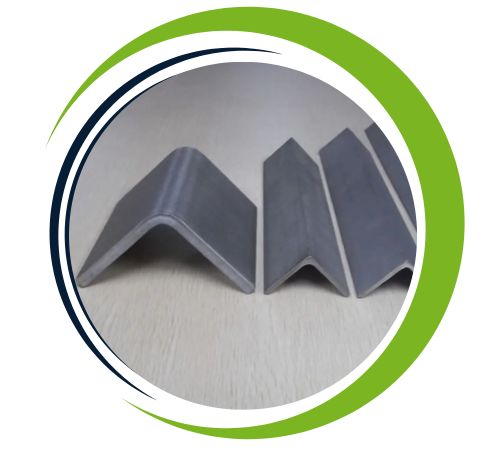

Stainless steel 317L angle is an alloy with high levels of chromium, nickel and molybdenum, providing excellent corrosion and oxidation resistance It exhibits outstanding mechanical properties, including high tensile and yield strength, and ductility and hardness which is excellent. This material is ideal for use in environments with chemicals, high temperatures and heavy materials due to its robust structure. Benefits include exceptional resistance to pitting and crack corrosion, durability in high acid and chloride conditions, and long service life, making it desirable for industrial and structural applications.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The stainless steel 317L angle provides excellent corrosion resistance, especially in aggressive environments with acids and chlorides, due to its high malybdenum content. It has excellent strength and stability, making it ideal for construction applications. The low carbon content reduces carbide precipitation during welding, resulting in stronger and longer lasting joints. The alloy provides excellent thermal and oxidation resistance, allowing it to be used at higher temperatures. Additionally, the 317L Angle is versatile, easy to manufacture, and requires little maintenance, making it cost-effective for the chemical, marine and industrial industries.
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
The stainless steel 317L angle is a low-carbon, corrosion-resistant material commonly used in harsh environments. Applications include applications in the chemical, pharmaceutical, and food industries, where resistance to chloride stress-induced cracking is important Applications in power plants, water treatment plants, and the marine environment. With excellent resistance to oxidation and high temperatures, it is ideal for structural support, frames and brackets in construction and manufacturing, providing durability and durability in harsh applications.
