Shipbuilding Steel Sheet and Plate

Strategically based in Amman, Jordan, Nizar Sheetsandplates has built a strong reputation as a trusted partner in the region’s industrial landscape. We specialize in providing high-grade shipbuilding steel sheet and plate, materials that are fundamental to marine engineering. Our commitment goes beyond mere supply; we understand the critical nature of maritime projects and are dedicated to delivering products that meet the most demanding international standards, ensuring the safety and longevity of the vessels that travel the world’s waterways.

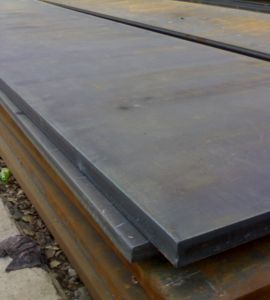

LR Shipbuilding Steel Plate

Grade A Shipbuilding Steel Plate

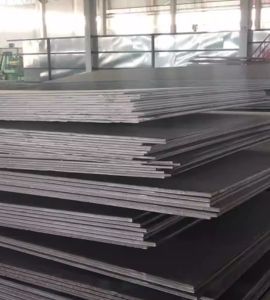

Ship Steel Sheet

Hot Rolled Shipbuilding 12mm Carbon Plate Manufacturer in Zarqa, Shipbuilding Sheet Ah40 Marine Grade Steel Plate Wadi Al Seer, Hot Rolled EH36 Shipbuilding Steel Sheet Supplier in Amman, 12mm Black Surface Iron Ship Steel Sheet Exporter in Russeifa, Shipbuilding Steel Plate EH36 Price List in Jordan, ASTM A131 Shipbuilding Steel Plate Distributor in Wadi Al Seer, LR Shipbuilding Steel Plate and Sheet Supplier in Zarqa, HR Shipbuilding Carbon Plate Distributor in Jordan, DH36 High Strength Shipbuilding Steel Plates Sizes in mm

The composition of shipbuilding steel is precisely engineered for resilience, typically featuring carefully balanced elements like carbon and manganese. This specific chemistry grants the material its essential mechanical properties, including exceptional tensile strength and, crucially, high impact toughness, especially at low temperatures. This means the steel can withstand the immense forces of the open sea and resist brittle fracture, maintaining its integrity in the most challenging marine environments where failure is not an option.

Shipbuilding Steel Sheet and Plate Specification

Weight	Up to 40 ton
Width	1500-4000
Thickness	4-200 mm
grades	EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents
Length	Up to 20000
Delivery condition	quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled

Chemical Composition of Ship Steel Plate

Grade	C%≤	Al %	Mn %	p % ≤	S % ≤	Si %	Nb %	V %
D32 A32 E32	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	—	—
A	0.22	—	≥ 2.5C	0.04	0.40	0.10~0.35	—	—
B	0.21	—	0.60~1.00	0.04	0.40	0.10~0.35	—	—
E	0.18	≥0.015	0.70~1.20	0.04	0.04	0.10~0.35	—
D36 A36 E36	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	0.015~0.050	0.030~0.10
D	0.21	≥0.015	0.60~1.00	0.04	0.04	0.10~0.35	—	—

Shipbuilding Steel Plate Mechanical Properties

Grade	Yieldpoint (Mpa) ≥	Tensile Strength (Mpa)	Elongation （%）≥	cold bend test		Thickness (mm)	V-impact test
				b=5a 120°	b=2a 180°		Temperature （℃）	Average AKV A kv /J
								lengthways	crosswise
								≥
A	235	400~490	22	—	d=2a	≤50 mm	—	—	—
B				d=3a	—		0	27	20
D							-10
E							-40
A32	315	440~590	22	d=3a	—	≤50 mm	0	31	22
D32							-20
E32							-40
A36	355	490~620	21	d=3a	—	≤50 mm	0	34	24
D36							-20
E36							-40

Ship Steel Plate Price in Irbid, LR Shipbuilding Steel Plate Weight Chart, Shipyard Steel Plate Supplier in Jordan, Stockist of Hot Rolled Steel Plate A36 in Russeifa, Ship Steel Sheet Supplier in Jordan, Cut Length AH36 Ship Steel Plate Price List in Amman, Grade A Shipbuilding Steel Plate Supplier in Russeifa, ASTM AH36 High Strength Shipbuilding Steel Plate Exporter in Zarqa, ASTM A131 Grade AH36 Shipbuilding Steel Sheets and Plates Exporter in Jordan, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates in Irbid

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Shipbuilding Steel Sheet and Plate Manufacturer and Exporter in Amman, Jordan

Nizar Sheets and Plates based in Amman, Jordan, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Ship Steel Plate Size Range

size(mm)						CSA (cm2)	weight (kg/m)
	h	t	r1	b	r	CSA (cm2)	weight (kg/m)
	19	5	4	80	≤1.5	5.41	4.25
	20	6	4	80	≤2	6.21	4.88
	22.5	7	4.5	100	≤2	8.74	6.86
	23.5	8	4.5	100	≤2	9.74	7.65
	23	6	5	120	≤2	9.32	7.32
	24	7				10.52	8.26
	25	8				11.72	9.2
	26	7	5.5	140	≤2	12.43	9.75
	27	8			≤2	13.83	10.85
	29	10			≤3	16.63	13.05
	29	7	6	160	≤2	14.6	11.46
	30	8				16.2	12.72
	31	9				17.8	13.97
	33	11			≤3	21	16.49
	33	8	7	180	≤2	18.86	14.8
	34	9			≤2	20.66	16.22
	35	10			≤3	22.46	17.63
	36	11			≤3	24.26	19.04
	37	9	8	200	≤2	23.66	18.57
	38	10			≤3	25.66	20.14
	39	11				27.66	21.71
	40	12				29.66	23.28
	41	10	9	220	≤3	29.66	22.27
	42	11				29	24.5
	43	12				31.2	26.22
	40	10	10	240	≤3	33.49	25.5
	45	11				34.89	27.39
	46	12				37.29	29.27
	47	10	11	260	≤3	36.11	28.35
	48	11				38.71	30.39
	49	12				41.31	32.43
	51	11	12	280	≤3	42.68	33.5
	52	12				45.48	35.7
	53	13				48.28	37.9
	54	11	13	300	≤3	46.78	36.7
	55	12				49.79	39.09
	56	13				52.79	41.44
	58	12	14	320	≤3	54.25	42.6
	59	13			≤3	57.25	45.09
	60	14			≤4	60.85	47.6
	61	12	15	340	≤3	58.84	46.2
	62	13			≤3	62.24	48.86
	63	14			≤4	65.54	51.5
	66.5	13	16.5	370	≤3	69.7	54.7
	67.5	14			≤4	73.4	57.6
	68.5	15			≤4	77.1	60.5
	72	14	18	400	≤4	81.48	63.96
	73	15				85.48	67.1
	74	16				89.48	70.2
	76.5	14	19.5	430	≤4	89.7	70.6
	77.5	15				94.19	73.9
	79.5	17				102.79	80.7
	81.5	19				111.39	87.4
	82.5	20				115	90.8

Shipbuilding Plate AH36 Dimensional Deviation

nominal thickness（mm）	minus deviation (mm)	The thickness deviation with following width (mm)
nominal thickness（mm）	minus deviation (mm)	> 1500 ~1700	> 1200 ~1500	> 1700 ~1800	> 1000 ~1200	> 1800 ~2000	> 2000 ~2300	> 2300 ~2500	> 2500 ~2600	2600 ~2800	> 2800 ~3000
>12~25 mm	-0.8 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.8	+1.0	+1.1	+1.2
>25~30 mm	-0.9 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.1	+1.2
>30~34 mm	-1.0 mm	+0.3 mm	+0.3 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.2	+1.3
>34~40 mm	-1.1 mm	+0.5 mm	+0.4 mm	+0.6 mm	+0.3 mm	+0.7 mm	+0.9 mm	+1.0	+1.1	+1.3	+1.4
>40~45 mm	-1.2 mm	+0.6 mm	+0.5 mm	+0.7 mm	+0.4 mm	+0.8 mm	+1.0 mm	+1.1	+1.2	+1.4	+1.

Marine Metal Sheet Grade a AH36 Shipbuilding Steel Plates Distributor in Jordan, LR Shipbuilding Steel Plate Supplier in Amman, 8mm Thickness Hot Rolled Steel Plates for Shipbuilding, CCS LR Grade A Steel Plates Weight Chart, Low DH36 High Strength Shipbuilding Steel Sheet Exporter in Russeifa, Shipbuilding Steel Plate Manufacturer in Zarqa, FH36 Grade A Marine Shipbuilding Steel Plates Sizes in mm, Hot Rolled Steel A36 Sheets and Plates Irbid

Shipbuilding Steel Sheet and Plate provide exceptional strength and durability, which is critical to withstanding the harsh elements of the sea. They improve corrosion resistance, extend the life of the container, and reduce maintenance costs. These materials are extremely versatile, contributing to the hull, deck and other important features. With excellent weldability and structural integrity, safety and reliability are ensured under extreme conditions. Additionally, steel plate ships are available in a variety of styles, meeting design and performance requirements. Their low cost and compliance with stringent industry standards makes them indispensable in modern shipbuilding.

Types of Shipbuilding Steel Sheet and Plate

DH40 Marine Grade Ship Steel Plates Dealer in Zarqa, CCS LR Grade A Shipbuilding Steel Plates Supplier in Zarqa, ASTM A131 Grade AH36 Shipbuilding Steel Sheet and Plates in Wadi Al Seer, DH36 Shipbuilding Steel Plates Size Chart, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates Price in Irbid, ASTM A131 High Strength Shipbuilding Steel Plate Stockist in Russeifa, Ship Steel Plate Stockist in Amman, AH36 Steel Plate Supplier in Russeifa

Are Custom Sizes Available for Shipbuilding Steel Sheet and Plate?

Yes, we offer custom sizes for Shipbuilding Steel Sheet and Plate to meet specific project needs. Our team at Nizar Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Shipbuilding Steel Sheet and Plate

From the massive hulls of cargo ships and oil tankers to the intricate decks of offshore platforms, this specialized steel is the backbone of marine construction. Its applications extend to crafting internal bulkheads that create watertight compartments and fabricating the superstructures that rise above the deck. Essentially, wherever strength, weldability, and corrosion resistance are paramount for withstanding the harsh, corrosive seawater environment, shipbuilding steel plate and sheet provide the reliable foundation for safety and operational success on the water.
