Phosphorous Bronze Sheets and Plates

Nizar Sheetsandplates, located in Amman, Jordan, specializes in providing top-notch phosphor bronze sheets and plates. These products are highly regarded for their remarkable strength, resistance to corrosion, and durability, making them ideal for both industrial and precision engineering applications. Each sheet and plate is crafted with meticulous attention to quality, adhering to international standards to guarantee consistent reliability in various environments, including electrical, mechanical, and marine settings. With a diverse selection of thicknesses and dimensions, Nizar Sheetsandplates ensures that their phosphor bronze offerings boast excellent mechanical stability, a smooth surface finish, and long-lasting durability for even the most demanding uses.

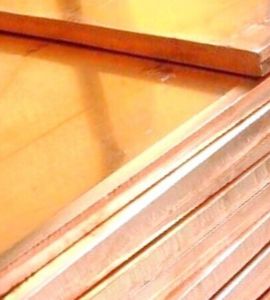

Phosphorous Bronze Plate

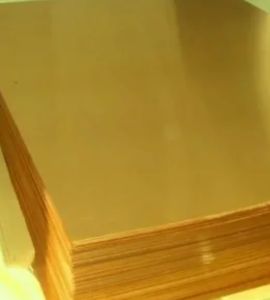

Phosphorous Bronze HR Plates

Phosphorous Bronze CR Sheet

ASTM B103 Phosphor Bronze Sheets Dealer in Zarqa, Phosphorous Bronze Plates Supplier in Zarqa, Phosphorous Bronze Sheets in Wadi Al Seer, Phosphorous Bronze Plates Size Chart, Phosphorous Bronze Sheet Price in Irbid, Phosphorous Bronze Plates Supplier in Jordan, Phosphorous Bronze Sheet Stockist in Russeifa, Alloy Sheets and Plates Exporter in Jordan, Alloy Sheet Stockist in Amman, Phosphorous Bronze Plates Supplier in Russeifa

Phosphor bronze is a unique copper alloy that incorporates specific amounts of tin and phosphorus. This special blend enhances its hardness, fatigue resistance, wear resistance, and elasticity, all while preserving outstanding corrosion resistance. The material is known for its high tensile strength, good ductility, and exceptional machinability, making it perfect for components that require both precision and durability. Its low friction characteristics and ability to maintain mechanical performance under repeated stress make phosphor bronze a go-to choice in electrical, mechanical, and marine engineering fields.

Phosphorous Bronze Sheets and Plates Specification

Material	Phosphor Bronze Sheet/Plate
Grade	Alloy 510, Alloy 521, Alloy 519, Alloy 544
Standard	ASTM B103
Size	Thickness 0.1 mm to 50 mm; Width up to 500 mm; Length up to 2000 mm
Surface	Rolling surface, Chemical cleaned, Grinding

Chemical Composition of Phosphorous Bronze Sheets and Plates

Element	Zinc (Zn)	Iron (Fe)	Tin (Sn)	Copper (Cu)	Lead (Pb)	Phosphorous (P)	Nickel (Ni)	Others
%	.00 – .20	.00 – .10	4.50 – 5.50	Balance	.00 – .02	.01 – .40	.00 – .20	.00 – .20

Mechanical Properties Of Phosphorous Bronze Sheets and Plates

Tensile strength	Hardness	Elongation at break	Modulus of elasticity	Izod impact strength	Shear strength
320 – 740 MPa	Brinell : 80 – 225	< 60 %	90 – 120 GPa	62 J m⁻¹	250 – 430 MPa

Electrical Properties of Phosphorous Bronze Sheets and Plates

Electrical resistivity	11-16 µOhmcm
Temperature coefficient	0.00060 – 0.00070 K⁻¹

Phosphorous Bronze Sheets Price in Irbid, Phosphorous Bronze Hot Rolled Weight Chart, Phosphorous Bronze Cold Rolled Supplier in Jordan, Stockist of Phosphorous Bronze Alloy Cold Rolled Sheets in Russeifa, Phosphorous Bronze Perforated Sheet Supplier in Jordan, Phosphorous Bronze 2B Finish Plates Price List in Amman, Alloy Perforated Plates Supplier in Russeifa, Phosphorous Bronze Chequered Plates Exporter in Zarqa, Phosphorous Bronze Alloy Polished Plates Exporter in Jordan, Phosphorous Bronze Perforated Plates Exporter in Wadi Al Seer, Phosphorous Bronze Sheet and Plate in Irbid

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Phosphorous Bronze Sheets and Plates Manufacturer and Exporter in Amman, Jordan

Nizar Sheets and Plates based in Amman, Jordan, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Thermal Properties of Phosphorous Bronze Sheets and Plates

Melting Point	Thermal Conductivity	Electrical Conductivity 20°C	Coeff. of Thermal Expansion 20-300°C	Specific Heat
1050°C	69 W/m°C	15% IACS	17.8 x 10-6	377 J/Kg°K

Fabrication Properties of Phosphorous Bronze Sheets and Plates

Machinability Rating	Annealing Temperature	Hot formability	Stress Relieving temperature	Cold Formability
20%	675 to 745°C	Limited	200 to 350°C	Excellent

Phosphorous Bronze Sheets and Plates Sizes

Dimensions in mm	Thickness in mm
200 X 150	.2
200 X 150	.25
200 X 150	.3
200 X 150	.4
200 X 150	.5
200 X 150	.8
200 X 150	1

Phosphorous Bronze Sheets and Plates Weight Chart

Size in mm (L * W * T)	Weight in kilogram
2000 * 300 * .5	2.69
2000 * 300 * .6	3.23
2000 * 300 * 1.2	6.46
2000 * 300 * 2	10.75
2000 * 300 * 2.5	13.43
2000 * 300 * 3	16.12

Phosphorous Bronze Clad Sheets Distributor in Jordan, Phosphorous Bronze 2B Finish Plates Supplier in Amman, Phosphorous Bronze Perforated Sheet Weight Chart, Phosphorous Bronze Plate Exporter in Russeifa, Phosphorous Bronze Polished Sheets Manufacturer in Zarqa, Phosphorous Bronze Shim Sheet and Plate Price List in Jordan, Phosphorous Bronze Chequered Plates Sizes in mm, Phosphorous Bronze Alloy Hot Rolled Plate Distributor in Wadi Al Seer, Phosphorous Bronze Sheets and Plates Irbid

Phosphor bronze sheets and plates are made from a small percentage of copper and tin phosphorus, which increases their strength, corrosion resistance and machinability In typical products 90-95% copper, 5-1. 8% tin, 0.01-0 and .35% phosphorus. These alloys exhibit excellent mechanical properties such as high tensile strength (up to 600 MPa), excellent fatigue resistance and low abrasion resistance, especially corrosion resistance in marine and chemical environments, and also high toughness, Because of their high durability and durability, phosphor copper sheets and plates are ideal for precision applications in a variety of industrial applications.

Types of Phosphorous Bronze Sheets and Plates

Phosphorous Bronze Plates Manufacturer in Zarqa, Phosphorous Bronze Plates and Sheets Wadi Al Seer, ASME SB 103 Phosphorous Bronze Plates Supplier in Amman, Phosphorous Bronze Polished Plates Exporter in Russeifa, Phosphorous Bronze Alloy Chequered Plates Price List in Jordan, Phosphorous Bronze Cold Rolled Plate Distributor in Wadi Al Seer, Phosphorous Bronze Clad Plates and Sheets Supplier in Zarqa, Phosphorous Bronze Sheet and Plate Distributor in Jordan, Phosphorous Bronze Perforated Plate Sizes in mm

Are Custom Sizes Available for Phosphorous Bronze Sheets and Plates?

Yes, we offer custom sizes for Phosphorous Bronze Sheets and Plates to meet specific project needs. Our team at Nizar Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Phosphorous Bronze Sheets and Plates

These sheets and plates find applications in a variety of products, including electrical connectors, switchgear components, springs, washers, fasteners, bearing parts, and marine hardware. They are also utilized in musical instruments, automotive parts, industrial machinery, and any application that demands high corrosion resistance and excellent formability. Nizar Sheetsandplates provides phosphor bronze sheets and plates tailored to precise dimensions and custom specifications, ensuring top quality, structural integrity, and long-term performance across industrial, engineering, electrical, and marine applications.
