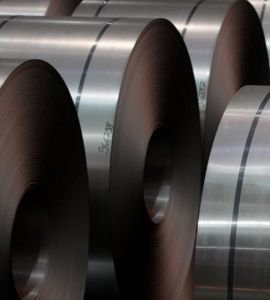

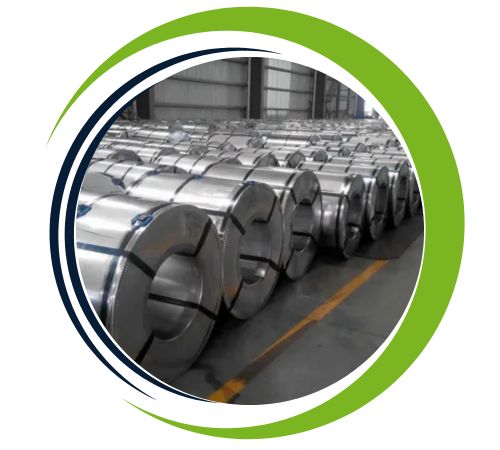

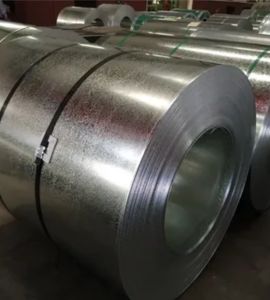

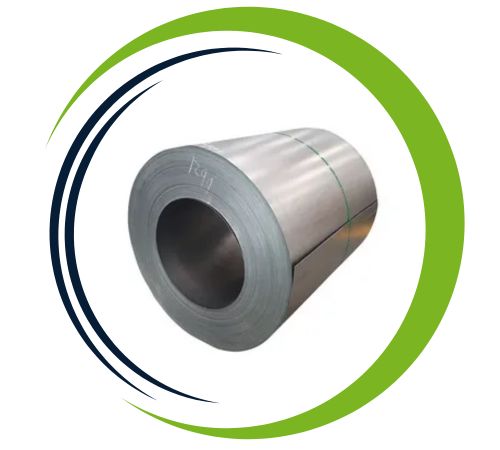

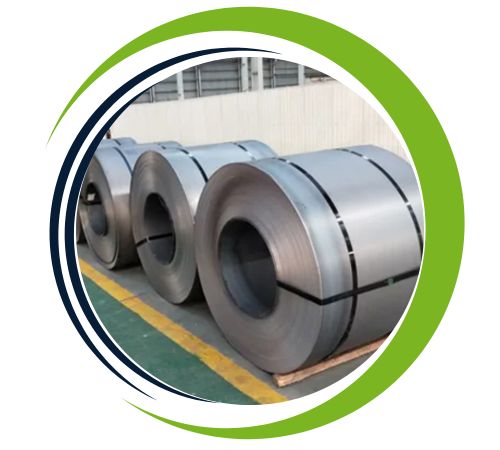

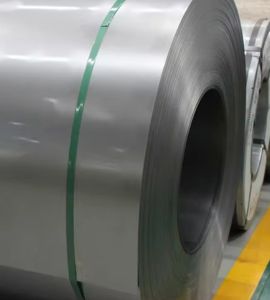

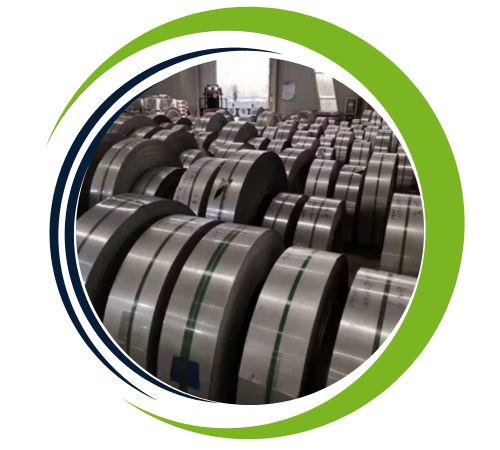

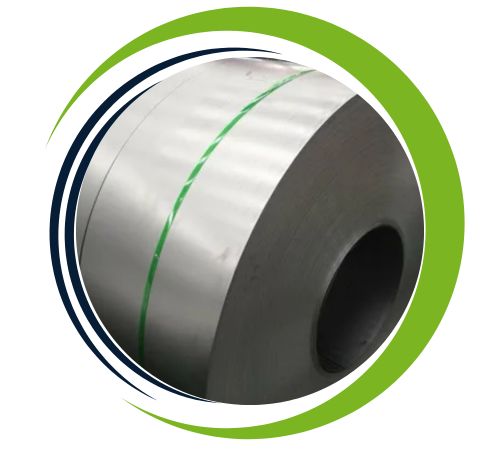

Nizar Sheetsandplates, located in Amman, Jordan, specializes in providing top-notch Nickel Alloy 201 coils, celebrated for their outstanding corrosion resistance, impressive strength, and thermal stability, making them ideal for tough industrial, chemical, and aerospace applications. Crafted with meticulous attention to quality and adhering to international standards, these coils guarantee dependable mechanical performance and uniform quality. With a variety of thicknesses, widths, and coil weights available, Nizar Sheetsandplates ensures that their Nickel Alloy 201 coils are perfect for precision fabrication, forming, and high-performance industrial uses.
Nickel Alloy 201 is a commercially pure nickel alloy characterized by low carbon content and carefully controlled amounts of sulfur, iron, and manganese. This unique composition offers remarkable corrosion resistance in both reducing and mildly oxidizing environments, along with excellent ductility, good electrical and thermal conductivity, and robust mechanical stability across a wide temperature range. The coils are easy to process, maintaining their dimensional integrity and superior mechanical properties during forming, slitting, and fabrication.
| Specification | ASTM B162 / ASME SB 162 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER’S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Nickel 201 | 0.2 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Grade | Density | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point | Elongation |
|---|---|---|---|---|---|
| Nickel 201 | 8.9 g/cm3 | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 1446 °C (2635 °F) | 45 % |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS | BS | GOST | AFNOR |
|---|---|---|---|---|---|---|---|
| Nickel 201 | N02201 | 2.4068 | LC Ni 99.2 | NW 2201 | NA 12 | НП-2 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Steel Coil | Size (mm) | Weight per Coil (Kg) | Size(mm) | Weight per Coil (Kg) |
|---|---|---|---|---|
| Nickel Alloy 201 Coil | 4000 x 2000 x 2.0 | 136.0 | 3000 x 1500 x 5.0 | 191.0 |
| Nickel Alloy 201 Coil | 4000 x 2000 x 3.0 | 204.0 | 4000 x 2000 x 5.0 | 340.0 |
| Nickel Alloy 201 Coil | 2500 x 1250 x 4.0 | 106.0 | 2500 x 1250 x 6.0 | 159.0 |
| Nickel Alloy 201 Coil | 3000 x 1500 x 4.0 | 153.0 | 3000 x 1500 x 6.0 | 230.0 |
| Nickel Alloy 201 Coil | 4000 x 2000 x 4.0 | 272.0 | 4000 x 2000 x 6.0 | 408.0 |
| Nickel Alloy 201 Coil | 2500 x 1250 x 5.0 | 133.0 |
The Nickel Alloy 201 coil/slitting coil has many advantages, including exceptional corrosion resistance, especially in environmental and reducing acidic conditions. Its high nickel content provides durability and long-term performance in harsh environments, including chemical processing and marine environments. The alloy exhibits excellent weldability, formability and machinability, allowing easy manufacture in a variety of shapes and sizes. In addition, it provides strength and stability at elevated temperatures, as well as reliability under stress. Nickel Alloy 201 also provides excellent electrical and thermal conductivity, making it ideal for applications where these properties are important.
These coils find extensive applications in chemical processing equipment, heat exchangers, marine components, aerospace parts, and industrial machinery that face corrosive conditions. They are also utilized in electrical and electronic components, fabrication that demands high corrosion resistance, and high-temperature industrial applications. Nizar Sheetsandplates provides Nickel Alloy 201 coils in precise widths, thicknesses, and custom specifications, ensuring consistent quality, structural reliability, and long-lasting performance for even the most demanding engineering and industrial needs.
