Nizar Sheetsandplates, located in Amman, Jordan, has built a solid reputation as a reliable manufacturer and supplier of top-notch metals, with a special focus on Monel products. Their Monel 400 Channels are celebrated for their durability, precision, and exceptional resistance to corrosion. Crafted using cutting-edge techniques and rigorous quality control, these channels adhere to strict industrial standards. Catering to sectors like marine engineering, chemical processing, aerospace, and oil and gas, Nizar Sheetsandplates guarantees that each Monel 400 Channel provides consistent performance, structural integrity, and long-lasting reliability, making them the go-to choice for critical applications in tough environments.
The Monel 400 Channel is primarily made up of nickel (63–70%) and copper (28–34%), along with trace amounts of iron and manganese. This unique alloy offers remarkable resistance to corrosion in seawater, acids, and alkaline solutions. On the mechanical side, Monel 400 Channels boast high tensile strength, toughness, and ductility, which allows for easy fabrication without sacrificing performance. They are non-magnetic and stable across a wide temperature range, blending mechanical reliability with chemical stability, making them perfect for structural and industrial applications that require both strength and resilience against harsh conditions.
| Specifications | : | ASTM B164 / ASME B164 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel 400 Channel | : | 40mm*20mm~300mm*300mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |

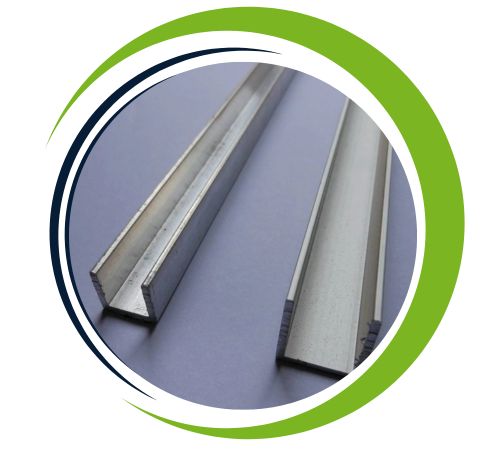

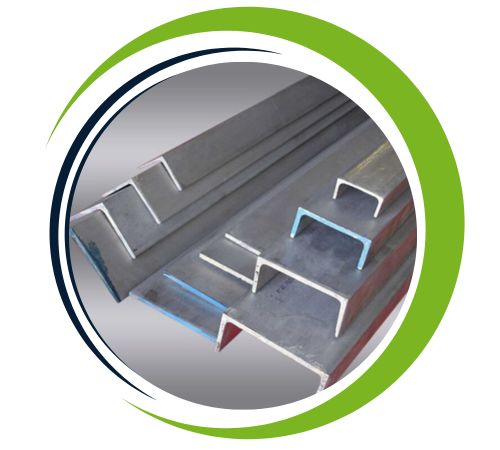

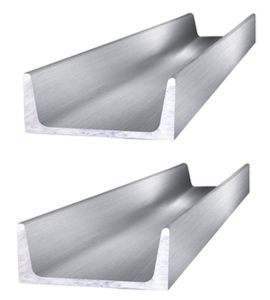

| Type | : | C Channel, U Channel, Channels |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 2.50 max | 63.00 min | 0.024 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40% |
Monel 400 Channel offers numerous advantages, including excellent corrosion resistance in marine and chemical environments, making it ideal for harsh conditions. Its high tensile and yield strength ensure durability and reliability under mechanical stress. The alloys resistance to acidic and alkaline substances enhances its versatility in diverse industrial applications. Monel 400 exhibits excellent thermal conductivity and stability, performing well in high-temperature environments. Additionally, it resists stress corrosion cracking and pitting, ensuring a long service life. Its machinability and weldability further simplify fabrication and installation processes.
Yes, we offer custom sizes for Monel 400 Channel to meet specific project needs. Our team at Nizar Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | MATERIAL NO. | US | HE | GOST | BS | AFNOR | IN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | MNJMc 28-2.5-1.5 | THAT 13 | NO-30M | NiCu30Fe |
Monel 400 Channels find extensive use in industries that require high-strength, corrosion-resistant materials. In marine engineering, they are essential for shipbuilding, seawater-handling systems, and structural frameworks. The chemical processing industry utilizes them in pipelines, reaction vessels, and heat exchangers that come into contact with corrosive fluids. In the aerospace and oil and gas sectors, Monel 400 Channels are critical for structural and high-stress applications. Their blend of durability, mechanical strength, and corrosion resistance makes Monel 400 Channels the preferred choice for demanding industrial, marine, and other applications.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
