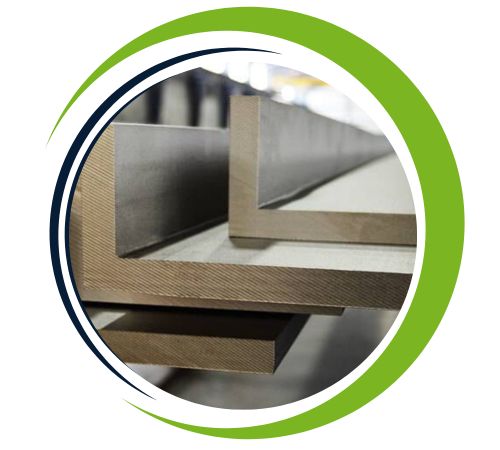

Incoloy 800 / 800H / 800HT Channel

Nestled in the industrial heart of Amman, Jordan, Nizar Sheetsandplates has built a strong reputation for supplying high-performance materials to a demanding market. We take particular pride in our expertise with Incoloy 800, 800H, and 800HT channels, offering clients reliable access to these essential components. Our team understands the critical nature of your projects, which is why we ensure the channels we supply meet the highest standards of quality and consistency, supporting industries that rely on superior strength and corrosion resistance.

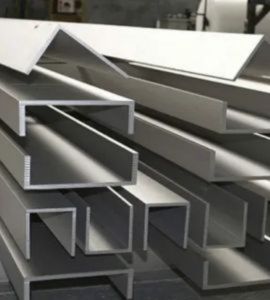

Incoloy 800 Channel

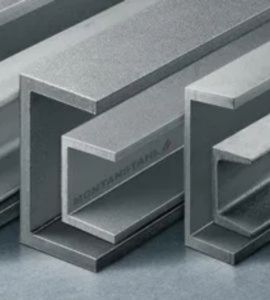

Nickel Alloy 800H C Channel

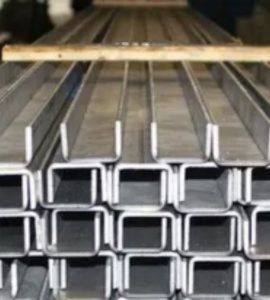

Incoloy 800HT U Channels

Alloy N08800 Channels Jordan, Incoloy 1.4876 Channels United kingdom, Incoloy 800 Channel Amman, UNS N08810 Channel Zarqa, Incoloy 800H Channels Russeifa, Nickel Alloy 800HT C Channels Stockist Wadi Al Seer, ASTM B164 Incoloy 800 Channels Supplier in Irbid.

The strength of these alloys lies in their specific composition and mechanical properties. Primarily a nickel-iron-chromium alloy, they are enhanced with carefully balanced additions of titanium and aluminum. This chemistry grants them excellent strength and resistance to oxidation and carburization, especially in high-temperature environments. The “H” and “HT” grades are thermally processed to achieve higher creep-rupture strength, making them uniquely suited to withstand sustained stress under intense heat.

Incoloy 800 / 800H / 800HT Channel Specification

Specifications : ASTM B408 / ASME SB408

Angle Size Range : 20 x 20 mm to 100 x 100 mm

Angles Thickness : 3 to 12 mm (depending on size)

Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm

Channel Thickness : 5 to 6 mm (depending on size)

Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes

Equivalent Incoloy 800 / 800H / 800HT Channel

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

Chemical Properties Of Incoloy 800 / 800H / 800HT Channel

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Incoloy 800 / 800H / 800HT Channel Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

ASME SB 408 Incoloy 800 J Channel Jordan, Incoloy 800H Channels United kingdom, Incoloy® Alloy 800HT Channels Exporter Amman, JIS NCF 800 Channels Zarqa, Incoloy 800H U Channels Russeifa, Alloy 800HT Industrial Channels Wadi Al Seer, Nickel Alloy 800 Channel Irbid, Incoloy 1.4958 Channels Jordan, Incoloy® Alloy 800H Channels Manufacturer in Amman, Jordan.

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Incoloy 800 / 800H / 800HT Channel Manufacturer and Exporter in Amman, Jordan

Nizar Sheets and Plates based in Amman, Jordan, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Alloy N08800 Channels Jordan, Incoloy 1.4876 Channels United kingdom, Incoloy 800 Channel Amman, UNS N08810 Channel Zarqa, Incoloy 800H Channels Russeifa, Nickel Alloy 800HT C Channels Stockist Wadi Al Seer, ASTM B164 Incoloy 800 Channels Supplier in Irbid.

Incoloy 800, 800H, and 800HT channels offer several advantages, including exceptional resistance to oxidation, carburization, and thermal degradation at high temperatures. These alloys maintain strength and stability in extreme environments, making them ideal for applications in chemical processing, power plants, and heat exchangers. Incoloy 800H and 800HT variants provide enhanced creep strength and resistance to thermal fatigue, with 800HT offering superior stability at elevated temperatures. Additionally, these alloys exhibit excellent weldability, formability, and corrosion resistance, ensuring long-term reliability and durability in challenging industrial conditions.

Types of Incoloy 800 / 800H / 800HT Channel

ASME SB 408 Incoloy 800 J Channel Jordan, Incoloy 800H Channels United kingdom, Incoloy® Alloy 800HT Channels Exporter Amman, JIS NCF 800 Channels Zarqa, Incoloy 800H U Channels Russeifa, Alloy 800HT Industrial Channels Wadi Al Seer, Nickel Alloy 800 Channel Irbid, Incoloy 1.4958 Channels Jordan, Incoloy® Alloy 800H Channels Manufacturer in Amman, Jordan.

Are Custom Sizes Available for Incoloy 800 / 800H / 800HT Channel?

Yes, we offer custom sizes for Incoloy 800 / 800H / 800HT Channel to meet specific project needs. Our team at Nizar Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Incoloy 800 / 800H / 800HT Channel

These versatile channels are fundamental in constructing robust frameworks for high-temperature industrial systems. You will typically find them forming the structural backbone within furnace muffles, heat-treating baskets, and radiant tubes in the petrochemical sector. Their exceptional performance also makes them ideal for components in thermal processing, nuclear reactors, and chemical processing equipment, where their ability to resist degradation over time ensures long-term operational safety and efficiency for your most challenging applications.
